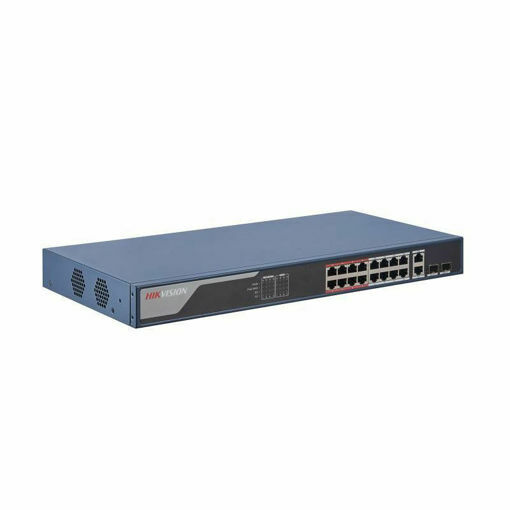

DS-3E1318P-EI

16 × 10/100 Mbps PoE ports, 2 × Gigabit combos

6 KV surge protection
Total PoE Power Budget 230 W
Support 802.1Q VLAN
Support PoE watchdog to detect and restart the cameras that do not respond
Support STP/RSTP Loop prevention
Support cable detection to locate failure
Up to 300 m Long Range PoE Transmission

SKU: HK-301802304

Overview
Contact Us

General

Shell

Metal material

Net Weight

2.59 kg (5.71 lb)

Gross Weight

3.68 kg (8.11 lb)

Dimensions (W × H × D)

440.00 mm × 44.00 mm × 220.80 mm (17.32'' × 1.73'' × 8.69'')

Operating Temperature

0 °C to 45 °C (0 °F to 113 °F)

Storage Temperature

-40 °C to 85 °C (-40 °F to 185 °F)

Operating Humidity

5% to 95% (no condensation)

Relative Humidity

5% to 95% (no condensation)

Power Supply

100-240 VAC, 50/60 Hz, Max. 4 A

Installation Mode

Rack (equipped with mounting ears)

Max. Power Consumption

250 W

Power Consumption in Idle

20 W

Surge Protection

6 kV

Network Parameters

Ports

16 × 10/100 Mbps PoE port,2 × Gigabit combo

MAC Address Table

16 K

Switching Capacity

Whole-Device Performance: 9.2 Gbps

Port Performance: 7.2 Gbps

Packet Forwarding Rate

Whole-Device Performance: 6.84 Mpps

Port Performance: 5.36 Mpps

Internal Cache

4 Mbits

PoE Power Supply

PoE Standard

IEEE 802.3af,IEEE 802.3at

PoE Power Pin

8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

PoE Port

PoE: Ports 1 to 16

Max. Port Power

30 W

PoE Power Budget

230 W
