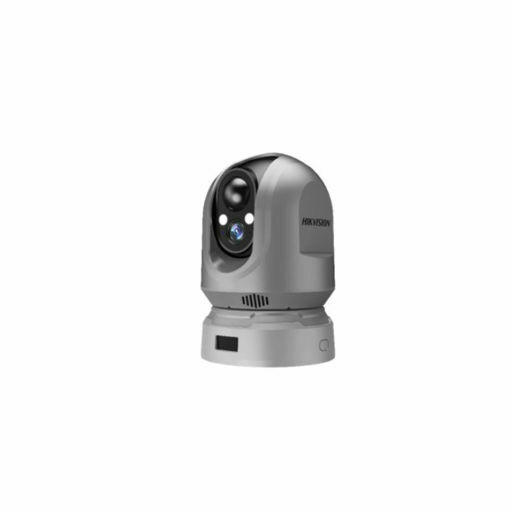

iDS-MCD20M/32G/GLE/PIR

Camera
Image Sensor
1/2.9" progressive scan CMOS
Zoom
4x Digital
Max. Resolution
1920 × 1080
Min. Illumination
Color: 0.015 Lux@ (F1.0, AGC ON)
Day & Night
Switch IR Cut Filter Automatically
Lens
Focal Length
3.8 mm fixed lens
Aperture
F2.0
FOV
Horizontal FOV: 80°

Vertical FOV: 44°

Diagonal FOV: 98°

Video
Video Compression
H.264, H.265
Video Format
PS
Main Stream
25 fps (1920 × 1080, 1280 × 720, 704 × 576, 704 × 288, 352 × 288)
Sub-Stream
25 fps (1280 × 720, 704 × 576, 704 × 288, 352 × 288)
Audio
Audio Compression
G.711ulaw, G.711alaw, G.722.1
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1)
Image Format
JPEG
Storage
RAM
128MB
ROM
Default 32 GB, 64 GB/128 GB/256 /512GB optional
IR
IR Range
Up to 10 m
IR Wavelength
850 nm
Wireless Network
Positioning Mode
GPS
Wi-Fi Frequency Band
2.412 to 2.472 GHz
Cellular Network
Available for models with '/GLE', '/GLE/PIR':

GSM: 850/900/1800/1900

WCDMA: B1/B8

FDD -LTE: B1/B3/B5/B7/B8/B20

TDD -LTE: B38/B40/B41

Wi-Fi Protocol
802.11 a/b/g/n
Network
Protocol
HTTPS, RTSP, NTP, FTP
API
ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
Interface
Indicator
1 Indicator for Charging/Working/Recording/Exception
Button
Power
SIM Card
Available for models with '/GLE' : 1 (Nano-SIM card slot)
Ethernet
1 RJ45 10M/100M/1000M self-adaptive ethernet port(s)
Charging Interface
Type-C
Extended Storage
1 Built-in memory card slot, up to 512 GB, supporting TF card
USB
USB 2.0
Audio
1 built-in mic(s),1 speaker(s)
General
RJ45 port, USB port
PTZ
Pan
0°~355°
Tilt
-2.5° to 52° (Auto-flip)
General
Operating Condition
-20 °C to 60 °C (-4 °F to 140 °F), Humidity 95% or less (non-condensing)
Operating System
Linux
Storage Condition
-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
MIC
Supported
Speaker
1 Built-in speaker, Max. power consumption: 1.2 W, Max. sound pressure level: 95 dB (10 cm)
Client
Hik-Connect, HikCentral Pro, HikCentral Master
Web Browser
Plug-in required live view: IE 10+Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+
Dimension
94.5 mm × 94.5 mm × 132 mm (3.72" × 3.72" × 5.2")
Power
5 VDC, 2.0 A, max. 10 W
380 g (without mounting) (1.54 lb.)
Installation Method
Desk-Mounted, Wall-Mounted, Tripod-Mounted, Movable Bracket
Packing List
1 × USB cable, 1 × wall mounted bracket
Battery
Battery Type
Lithium-ion battery, integral
Capacity
3220 mAh
Charging Time
≤ 4 h
Battery Life
Up to 12 h in 720p resolution¹
Approval
RF
EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014);
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014
Safety
CB: IEC 62368-1: 2014+A11, IEC 62368-1: 2018

CE-LVD: EN 62368-1: 2014/A11: 2017, EN IEC 62368-1:2020+A11:2020

CE-LVD: EN 62368-1: 2014/A11: 2017
