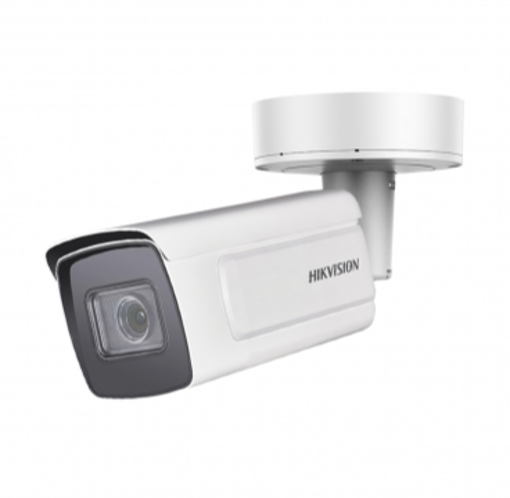

iDS-2CD7A46G0/P-IZHS(SA)(2.8-12mm)(RSA)

Manufacturer: Hikvision

Be the first to review this product

High quality imaging with 4 MP resolution

Hikvsion Embedded Open Platform 2.0 for 3rd party integration
Clear imaging against strong back light due to 140 dB WDR technology
Efficient H.265+ compression technology to save bandwidth and storage
Excellent low-light performance via DarkFighter technology
5 streams to meet a wide variety of applications
License Plate Recognition

SKU: HK-311319014

Overview
Reviews
Contact Us

Camera

Image Sensor 1/1.8" Progressive Scan CMOS

Max. Resolution 2688 × 1520

Min. Illumination

Color: 0.0005 Lux @ (F1.2, AGC ON);

B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time 1 s to 1/100,000 s

Day ＆ Night

IR cut filter

Blue glass module to reduce ghost phenomenon

Lens

Focal Length ＆ FOV

2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal

FOV: 141.1° to 48°

8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV:

49.6° to 17.3°

Focus Auto,Semi-auto,Manual

Iris Type P-iris

Aperture

2.8 to 12 mm: F1.2 to F2.5

8 to 32 mm: F1.7 to F1.73

DORI

Wide:

2.8 to 12 mm: D (Detect): 60 m, O (Observe): 23.8 m, R (Recognize): 12 m, I (Identify):

6 m

8 to 32 mm: D (Detect): 150.3 m, O (Observe): 59.7 m, R (Recognize): 30.1 m, I

(Identify): 15 m

Tele:

2.8 to 12 mm: D (Detect): 149 m, O (Observe): 59.1 m, R (Recognize): 29.8 m, I

(Identify): 14.9 m

8 to 32 mm: D (Detect): 400 m, O (Observe): 158.7 m, R (Recognize): 80 m, I (Identify):

40 m

Illuminator

Supplement Light Type IR

Supplement Light Range

2.8 to 12 mm: 50 m

8 to 32 mm: 100 m

Smart Supplement Light Yes

IR Wavelength 850 nm

Video

Main Stream

50 Hz:

25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

50 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz:

30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

60 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)
