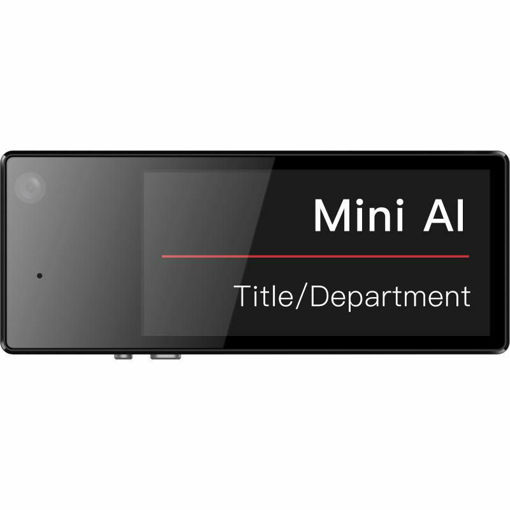

DS-MCC216/64G/WIFI(O-STD)

Camera
Image Sensor
1/2.9" progressive scan CMOS
Max. Resolution
1600 × 1200
Lens
Focal Length
1.36 mm fixed lens
FOV
Horizontal FOV: 91°

Vertical FOV: 74°

Diagonal FOV: 115°

Aperture
F2.2
Video
Video Format
PS, MP4
Video Compression
H.264, H.265
Main Stream
60 Hz: 30 fps (1600 x 1200, 1280 x 960, 640 × 480)
Audio
Audio Compression for Video Recording
G722_1,AAC
Audio Bit Rate
G722_1(16 kbps) ,AAC(64 kbps)
Image Format
JPEG
Screen
Screen Size
2.13"
Resolution
122 × 250; ink screen
Storage
RAM
128 MB
ROM
32 GB; 64 GB optional
Wireless Network
Wi-Fi Frequency Band
2.412 to 2.472 GHz
Wi-Fi Protocol
802.11 a/b/g/n
Network
Protocol
HTTPS, RTSP, NTP, FTP
API
ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
Interface
Indicator
2 Indicator(s) for Charging/Working/Recording/Exception/Wifi
Button
Power, Wi-Fi
Charging Interface
Type-C
USB
USB 2.0
General
Operating System
Linux
Power
5 VDC, 2.0 A, max. 10 W
Client
Hik-Connect, HikCentral Pro, HikCentral Master Lite
Operating Condition
Temperature: -20 °C to +55 °C (-4 °F to +131 °F)

Humidity: 90% or less (non-condensing)

Dimension
81 mm × 32.4 mm × 9 mm (3.2" × 1.3" × 0.4")
52 g (0.1 lb., without back plate)
MIC
Supported
