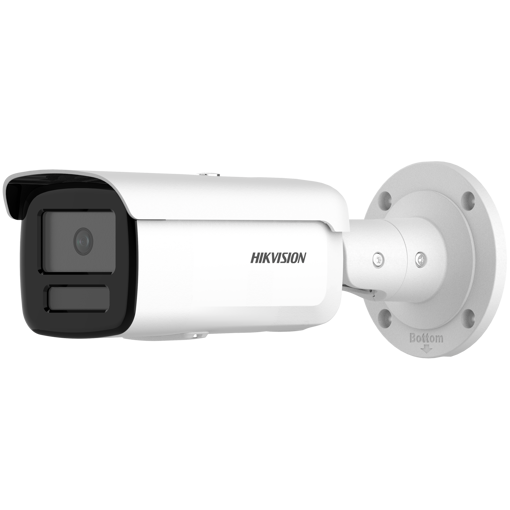

DS-2CD2T46G2H-2I(2.8mm)(O-STD)

High quality imaging with 4 MP resolution

SKU: HK-311324143

Camera

Image Sensor 1/3" Progressive Scan CMOS

Max. Resolution 2688 × 1520

Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR

Shutter Time 1/3 s to 1/100,000 s

Day ＆ Night IR cut filter

Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

Lens Type Fixed focal lens, 2.8 and 4 mm optional

Focal Length ＆ FOV

2.8 mm, horizontal FOV 100.2°, vertical FOV 54.7°, diagonal FOV 119.7°

4 mm, horizontal FOV 81.1°, vertical FOV 44.7°, diagonal FOV 94.6°

Lens Mount M12

Iris Type Fixed

Aperture F1.0

Depth of Field

2.8 mm: 1.9 m to ∞

4 mm: 2.5 m to ∞

DORI

2.8mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m

4mm: D: 78 m, O: 31 m, R: 15 m, I: 7 m

Illuminator

Supplement Light Type IR

Supplement Light Range 2I: up to 60 m; 4I: up to 80 m

Smart Supplement Light Yes

IR Wavelength 850 nm

Video

Main Stream

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
