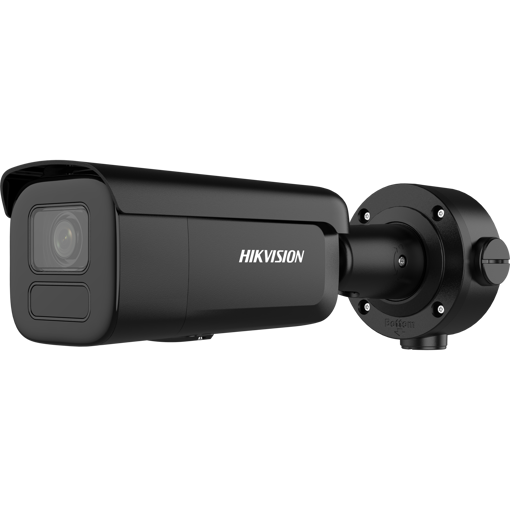

DS-2CD2686G2HT-IZS(2.8-12)/eF/O-STD/BLK

High quality imaging with 8 MP resolution

SKU: HK-311325268

Camera

Image Sensor 1/1.8" Progressive Scan CMOS

Max. Resolution 3840 × 2160

Min. Illumination Color: 0.0008 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR

Shutter Time 1/3 s to 1/100,000 s

Day & Night IR cut filter

Angle Adjustment Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV

137.4° to 47.3°

Lens Mount Integrated

Iris Type Fixed

Aperture F1.2

Depth of Field 1 m to ∞

DORI

Wide: D: 87 m, O: 35 m, R: 17 m, I: 9 m

Tele: D: 216 m, O: 86 m, R: 43 m, I: 22 m

Illuminator

Supplement Light Type IR

Supplement Light Range Up to 60 m

Smart Supplement Light Yes

IR Wavelength 850 nm

Video

Main Stream

50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 24 fps(3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 ×

720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
