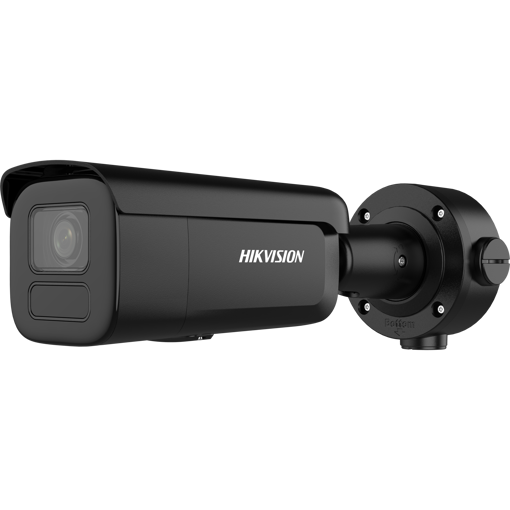

DS-2CD2646G2HT-IZS(2.8-12)/eF/O-STD/BLK

High quality imaging with 4 MP resolution

SKU: HK-311325267

Camera

Image Sensor 1/3" Progressive Scan CMOS

Max. Resolution 2688 × 1520

Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR

Shutter Time 1/3 s to 1/100,000 s

Day & Night IR cut filter

Angle Adjustment Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 105.4° to 34.3°, vertical FOV 56.1° to 19.3°, diagonal FOV

125.8° to 39.4°

Lens Mount Ø 14

Iris Type Fixed

Aperture F1.0

Depth of Field 1 m to ∞

DORI

Wide: D: 63.4m, O: 25.2 m, R: 12.7 m, I: 6.3 m

Tele: D: 180.6 m, O: 71.7 m, R: 36.1 m, I: 18.1 m

Illuminator

Supplement Light Type IR

Supplement Light Range Up to 60 m

Smart Supplement Light Yes

IR Wavelength 850 nm

Video

Main Stream

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
