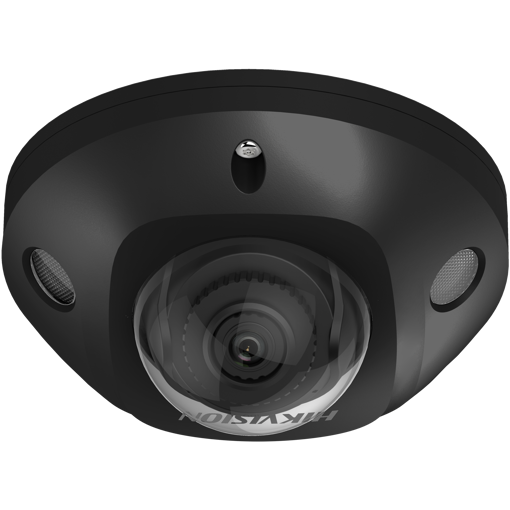

DS-2CD2586G2-IS(2.8mm)(C)(O-STD)(BLACK)

High quality imaging with 8 MP resolution

Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB WDR technology
Focus on human and vehicle targets classification based on deep learning
Water and dust resistant IP67 and vandal proof IK08
Excellent low-light performance with powered-by-DarkFighter technology
-S: audio and alarm interface available

SKU: HK-311318147

Overview
Contact Us

Camera

Image Sensor

1/1.8″ Progressive Scan CMOS

Max. Resolution

3840 × 2160

Min. Illumination

Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Lens Type

Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 110.0°, vertical FOV 56.7°, diagonal FOV 134.1°

4 mm, horizontal FOV 88.0°, vertical FOV 49.9°, diagonal FOV 100.4°

Lens Mount

M12

Iris Type

Fixed

Aperture

F1.6

Depth of Field

2.8 mm: 2.2 m to ∞

4 mm: 2.6 m to ∞

DORI

2.8 mm:

D: 89 m

O: 35 m

R: 18 m

I: 9 m

4 mm:

D: 99 m

O: 39 m

R: 20 m

I: 10 m

Illuminator

Supplement Light Type

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

50 Hz:

25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

24 fps (3840 × 2160)

30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
