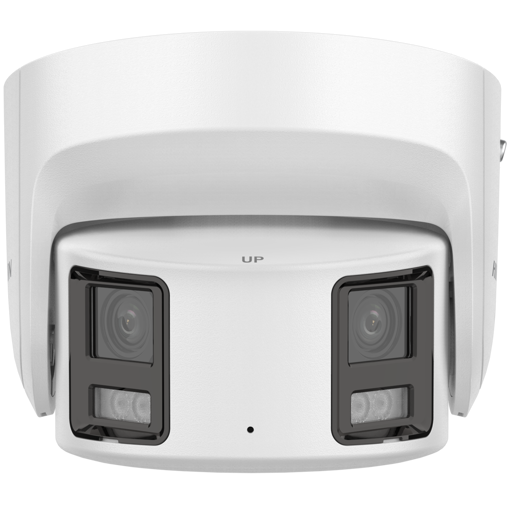

DS-2CD2387G2P-LSU/SL(4mm)(C)(O-STD)

Camera
Image Sensor
2 × 1/1.8" Progressive Scan CMOS
Max. Resolution
5120 × 1440
Min. Illumination
Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time
1/3 s to 1/100,000 s
Angle Adjustment
Pan: 0° to 30°,tilt: -75° to 75°
Lens
Lens Type
Fixed focal lens, Dual lens: 4 mm
Focal Length & FOV
4 mm, horizontal FOV: 180°, vertical FOV: 44°
Lens Mount
M16
Iris Type
Fixed
Aperture
F1.0
Depth of Field
3.6 m to ∞
DORI
DORI
4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
Illuminator
Supplement Light Type
White Light
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
Video
Main Stream
When WDR is On:

50 Hz: 12.5 fps (5120 × 1440)

60 Hz: 15 fps (5120 × 1440)

When WDR is Off:

50 Hz: 20 fps (5120 × 1440)

60 Hz: 20 fps (5120 × 1440)

Sub-Stream
When WDR is On:

50 Hz: 12.5 fps (1920 × 536, 960 × 272)

60 Hz: 15 fps (1920 × 536, 960 × 272)

When WDR is Off:

50 Hz: 20 fps (1920 × 536, 960 × 272)

60 Hz: 20 fps (1920 × 536, 960 × 272)
