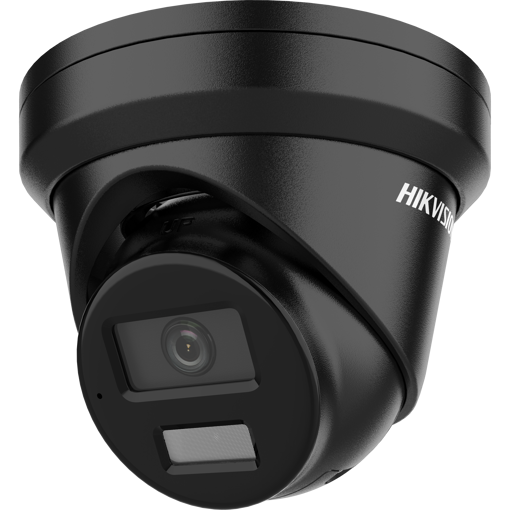

DS-2CD2347G2H-LISU/SL(2.8)/eF/O-STD/BLK

High quality imaging with 4 MP resolution

SKU: HK-311325336

Camera

Image Sensor 1/1.8" Progressive Scan CMOS

Max. Resolution 2688 × 1520

Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light

Shutter Time 1/3 s to 1/100,000 s

Day & Night IR cut filter

Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Lens Type Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 111.1°, vertical FOV 57.6°, diagonal FOV 138.5°

4 mm, horizontal FOV 95.2°, vertical FOV 48.3°, diagonal FOV 117.4°

Lens Mount M16

Iris Type Fixed

Aperture F1.0

Depth of Field

2.8 mm: 2.5 m to ∞

4 mm: 3.1 m to ∞

DORI

2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m

4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m

Illuminator

Supplement Light Type IR, White Light

Supplement Light Range Up to 30 m

Smart Supplement Light Yes

IR Wavelength 850 nm

Video

Main Stream

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
