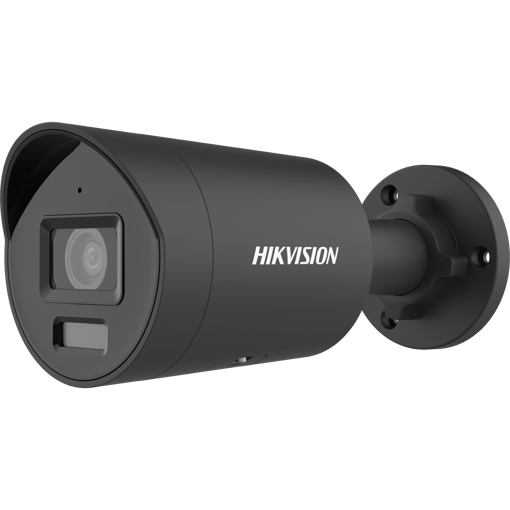

DS-2CD2087G2H-LIU/SL(2.8)eF/O-STD/BLACK

High quality imaging with 8 MP resolution

SKU: HK-311325331

Camera

Image Sensor 1/1.8" Progressive Scan CMOS

Max. Resolution 3200 × 1800

Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light

Shutter Time 1/3 s to 1/100,000 s

Day & Night IR cut filter

Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Lens Type Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 105.1°, vertical FOV 54.8°, diagonal FOV 128.2°

4 mm, horizontal FOV 90.0°, vertical FOV 45.8°, diagonal FOV 109.4°

Lens Mount M16

Iris Type Fixed

Aperture F1.0

Depth of Field

2.8 mm: 3.3 m to ∞

4 mm: 3.8 m to ∞

DORI

2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m

4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Illuminator

Supplement Light Type IR, White Light

Supplement Light Range Up to 40 m

Smart Supplement Light Yes

IR Wavelength 850 nm

Video

Main Stream

50 Hz:

25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

24 fps (3200 × 1800)

30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
