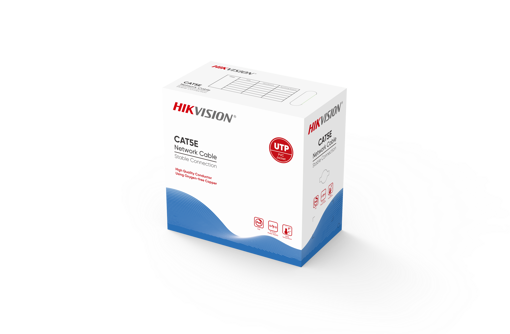

DS-1LN5E-E/E

Full diameter 305 m CAT5E network cable

Excellent transmission performance using oxygen-free copper
Quality verified by Fluke test
Full diameter and full length
Guaranteed long PoE transmission distance
Great flame resistance
Great PVC flame resistance

SKU: HK-307400069

Overview
Contact Us

General

Core Color

1 White- Blue /Blue 2 White-Orange /Orange,3 White- Green /Green 4 White- Brown /Brown,

Packing

Wooden Tray & Carton

Carton Dimension

Per request

Packing length

305±1.5m/80±0.5m

Rip-cord

Yes

Drain wire

Sheath Physical Properties

Before Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period(℃×hrs) 100℃×24h×7d,After Aging Tensile Strength(Mpa) ≥12.5, Elongation(%) ≥125,Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks,

Electrical Characteristics (20℃)

1.0-100.0MHz Impedance(Ω) 100±15,1.0-100.0MHz Delay Shew (ns/100m) ≤45,DC Resistance Ω/100m) max 14.8,DC Conductor Resistance Unbalance(%) max 5.0,

Conductor

Material

Solid-Bare Copper,Content 99.95%,

Nom.O.D.(mm)

0.450±0.005

Insulation

Material

HDPE

Diameter

0.82±0.04mm
