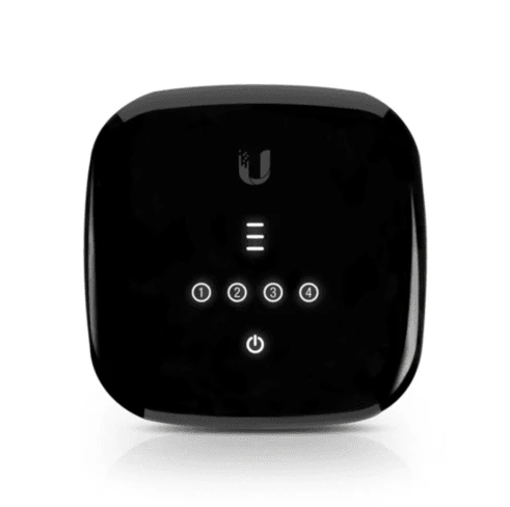

Ubiquiti UF WiFi, UFiber GPON Wi-Fi Router

Dimensions 126.3 x 126.1 x 31.7 mm (5 x 5 x 1.3")
Weight 190 g (6.7 oz)
Enclosure material UV-stabilized polycarbonate (PC110U)
Hardware
Networking interface (1) SC/APC, ITU-G.984 GPON WAN port
(4) GbE RJ45 LAN ports

WiFi 802.11n
Management interface Ethernet In-Band
PON
Power method DC Jack, 24V DC
24V Passive PoE (Pins 4, 5+; 7, 8-)
Power supply Universal AC/DC adapter, 100—240V AC, 50/60 Hz, 24V/0.5A
Supported voltage range 10–30V DC (passive PoE)
5V DC (adapter)
Max. power consumption 7W
Total non-blocking line rate
Downstream
Upstream
2.488 Gbps
1.244 Gbps
Normal range of optical module
TX
RX
1.5 to 5 dBm
-8 to -28 dBm
Max. WiFi TX power
2.4 GHz
20 dBm
MIMO
2.4 GHz
2 x 2
Max. WiFi radio rate
2.4 GHz
300 Mbps
Antenna gain
2.4 GHz
1 dBi
Button (1) Factory reset
Ambient operating temperature -10 to 45° C (14 to 113° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications FCC, IC, CE
NDAA Compliant Yes
