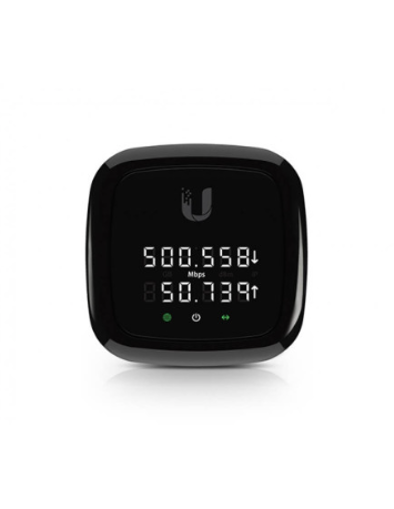

Ubiquiti UF Nano, UFiber Nano GPON CPE Network Unit

Dimensions 77 x 77 x 28 mm (3 x 3 x 1.1")
Weight 110 g (3.9 oz)
Enclosure material UV-stabilized polycarbonate (PC110U)
Hardware
Networking interface (1) SC/APC, ITU-G.984 GPON WAN port
(1) GbE RJ45 LAN ports
Management interface Ethernet In-Band
PON
Power method 24V Passive PoE (Pins 4, 5+; 7, 8-), 0.3A
Power supply UniFi PoE Switch
Supported voltage range 20–28V DC
Max. power consumption 7W
Total non-blocking line rate
Downstream
Upstream
2.488 Gbps
1.244 Gbps
Normal range of optical module
TX
RX
1.5 to 5 dBm
-8 to -28 dBm
Button (1) Factory reset
(1) Information
Ambient operating temperature -40 to 55° C (-40 to 158° F)
