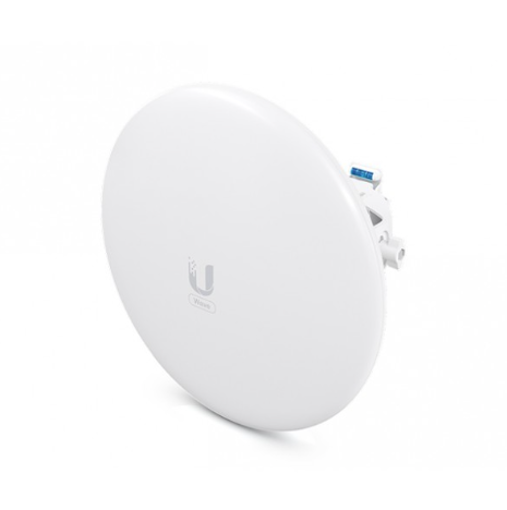

UISP 60GHz/5GHz Wave Nano Radio

The Wave Nano is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app. Key Features: 5 GHz backup radio Link range: up to 5 km Router mode support Integrated GPS antenna Link planning support via ISP Design Center

SKU: UB-WAVE NANO

Overview
Contact Us

Mechanical

Dimensions Ø256.5 x 113.5 mm (Ø10.1 x 4.5")

Weight Without mount: 932 g (2.1 lb)

With mount: 1.2 kg (2.6 lb)

Enclosure material Aluminum alloy, UV stabilized plastic

Mount material Aluminum alloy, UV stabilized plastic

Pole mount diameter 25 to 63.5 mm (1 to 2.5") on pipe outer diameter

Wind loading 127 N at 200 km/h (28.6 lbf at 125 mph)

Weatherproofing IPX6

Hardware

Processor Dual-core ARM® Cortex®-A53 at 1 GHz

Memory DDR3L 512 MB

Networking interface (1) GbE RJ45 port

Max. power consumption 20W

Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)

Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only

Power supply 48V DC, 0.65A gigabit PoE adapter (Included)

Can be powered by a UISP Router or UISP Switch

Supported voltage range 44–54V DC

22–27V DC
