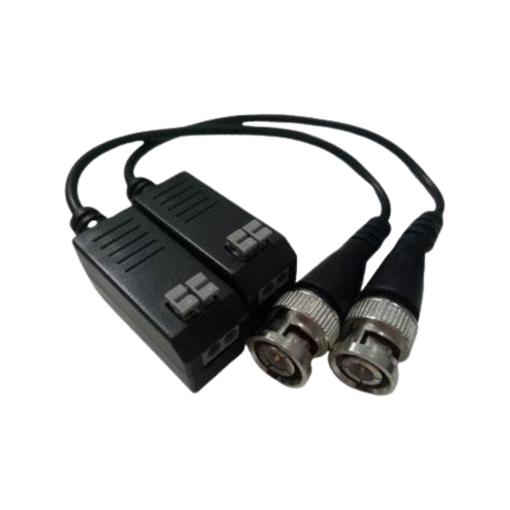

    HIKVISION BALUN PAIR WITH PIGTAIL

    1 channel passive video UTP balun



    • Pat press type terminal on top, clasp aside.
    • Support device camera/DVR with POC
    • Real-time transmit video signal, and high quality and stable video
    • Compatible with HDCVI/TVI/AHD/CVBS
    • Transmission distance: non-POC Camera Max. 250m;POC
    • Camera Max. 150m.
    SKU: HK-DS 1H18S E
    Login For Price
    Properties
    Transmission Signal
    1 channel
    Transmission Distance
    Non-POC Camera: Max 250m
    POC Camera: Max 150m
    Category Type
    UTP CAT 5E/ 6 (R<10Ω/100M)
    Video Transmission Properties and Port
    Coaxial Video Connector
    BNC-M
    Twisted-pair Video Connector
    Pat Push Interface
    Compatible Format
    HDCVI/TVI/AHD/CVBS
    Resolution
    720P/1080P/4MP/5MP/8MP
    Ant-interference
    >60db
    Protection
    ESD
    contact discharge electricity level3
    air discharge electricity level3
    Per: IEC61000-4-2
    Coaxial Cable Connector
    2KV(common-code) Per:IEC61000-4-5
    UTP Cable Connector
    2KV(different-code),
    2KV(common-code)
    Per:IEC61000-4-5
    Impedance
    BNC Male
    75 ohms
    UTP Cable
    100 ohms
    *
    *
    *
    *
