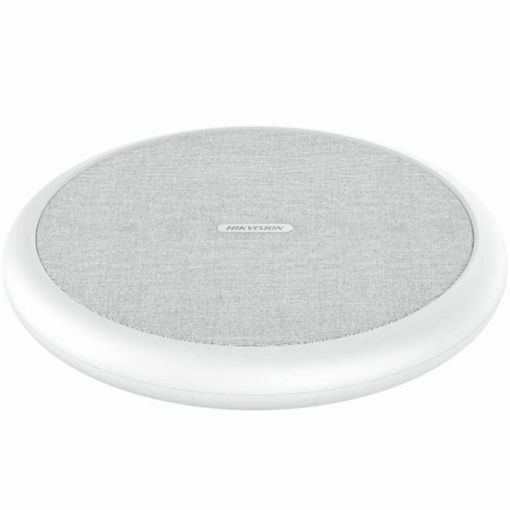

DS-UAC-M1P

Adopts multi-mic array, picking up sounds in the radius up to 10 meters

The built-in digital circuit is embedded with DSP processing unit and AGC technology to realize clear sound with high fidelity
With multi-mic array design and self-adaptive beamforming technology, the microphone reduces reverberation effectively
Supports accessing echo reference signal via line in interface, and with AEC algorithm, the microphone suppresses echo and squeal effectively
Supports smart noise reduction, avoiding environmental noise
The indicator is convenient for troubleshooting

SKU: HK-300615437

Available models DS-UAC-M1P

SNR 90 dB

Power 9 VDC~30 VDC, PoE, 2.4 W Max

Material Plastic

Dimension Ø250 mm × 34.5 mm (Ø9.84" × 1.36")

Weight Approx. 740 g (1.63 lb.)

Protection lightning protection, power polarity reversal protection, and electrostatic discharge protection

Amount 32

Direction Omnidirectional

Pickup Distance In the radius up to 10 m

Sensitivity -36 dB±1 dBFS

Frequency Response 20 Hz~16 kHz

Dynamic Range 105 dB

Max. Sound Pressure Level 120 dBSPL

Output Amplitude 2.5 Vpp MAX

Audio Transmission Distance ≥3000 m

Output Impedance 600 Ω, balanced output

Distortion Degree ≤3%

Echo Suppression Yes

Noise Reduction Adjustment digital noise reduction

Device Management Power-off detection, program exception detection

Anti-reverberation Yes

Audio Sampling Rate 16 kHz, 32 kHz

Indicator Solid white: normally workingSolid red: abnormalNo light: no power supply

Device Interface Line out, Line in, DC power input, RJ45 network cable

Operating Condition -10 ℃～50 ℃ (14°F~122°F, Indoor)

Packing List Microphone × 1Extension Cable × 1Quick Start Guide × 1Installation Plate × 1
