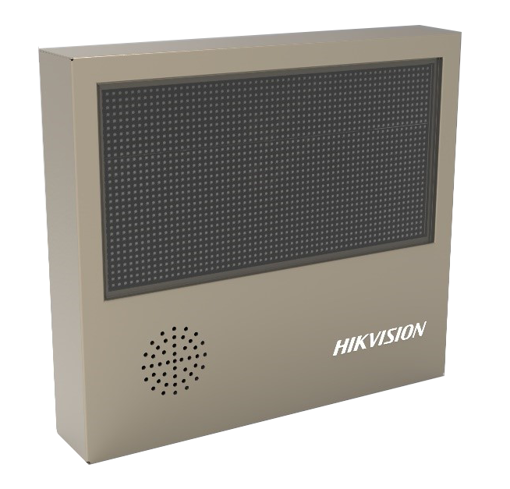

DS-TVL224-4-5Y(2 rows)

Placed in the entrance of the parking lot, displaying the information of welcome, advertising and news, etc

Displaying standard Chinese characters and numeric characters, and its standard communication method is RJ45, both online and offline are supported
Displaying content can be the remaining parking spaces of the whole parking lot, license plate number, charge and weather forecast, etc
Displaying different content according to the instruction from the host computer are subtitle

SKU: HK-315100557

Overview
Contact Us

Installation

Maintenance Mode Front

Display Screen

Pixel Pitch P4.75

Resolution 64*32

Display Content GB2312 Character Set，16*16 Lattice Chinese Characters

Screen Type LED

Display Color Red,Green,Yellow

Number of Module 1

Viewing Angle 120° (H) / 120° (V)

Display Mode instant，left shift，up forward，etc.

Pixel Pitch Category 4.75

Color Temperature 3000k to 6000k

Brightness Uniformity ≥95%

Color Uniformity ≥95%

Contrast Ratio 2000 : 1

Luminance 1500cd/m²

Scanning Mode 8S

Communication Mode TCP

General

Screen Border Material Iron Frame Spraying Plastic（Dark armored glass for display part）

Working Temperature and

Humidity

-30 to 60 °C

10% to 85% RH

Power Supply AC110-240V,50/60Hz,max0.5A

Package Dimensions 475mm*430mm*185mm

Dimensions 355 × 315 × 80 mm (13.98 × 12.4 × 3.15 inch)

Weight 5.3 kg (11.68 lb.)

Weight (with Package) 6.4 kg (14.11 lb.)

Storage Temperature and

Humidity

-40 to 70 °C

10% to 85% RH

Average Consumption 10W

Max. Consumption 30W

Lifespan 100000Hours

Approval

Protection IP54
