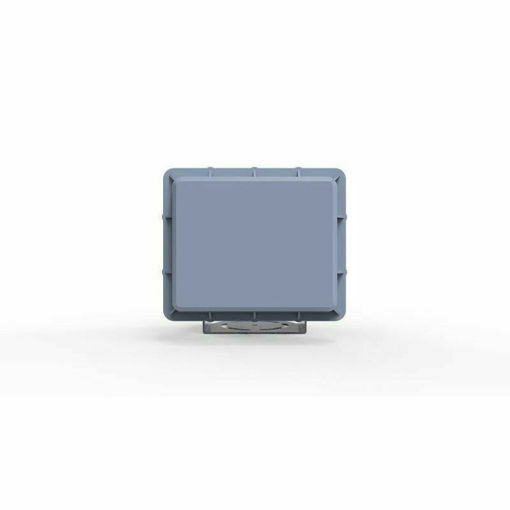

DS-TD10M-1

Manufacturer: Hikvision

Be the first to review this product

The radar can measure the speed of up to 32 vehicles in different lanes (1-3 lanes)

Wide speed measuring range between 10 to 320 km/h
Adjustable capture distance between 18 to 70 m
Up to 95% capture rate with advanced speed measuring technology

SKU: HK-302102127

Overview
Reviews
Contact Us

Radar

Working Frequency

24.05 to 24.25 GHz

Modulation Waveform

FMCW

Sweep Bandwidth

170M Hz

Horizontal Detection Angle

35°

Vertical Detection Angle

16°

Max. Detectable Targets

Up to 32 target(s)

Coverage Lanes

Up to 3 lane(s)

Distance Resolution

1.2 m

Distance Measurement Accuracy

± 1 m

Angle Resolution

3.8°

Speed Measuring Range

10 km/h to 320 km/h

Speed Resolution

0.23m/s

Speed Measuring Accuracy

±2 km/h

Trigger Mode

Approaching direction,Leaving direction,Bidrection

Capture Rate

≥ 95% (when traffic is smooth)

Interface

Network Interface

1 RJ45 100M self-adaptive Ethernet port(s),Wi-Fi

RS-485

1 RS-485

General

Power

DC 9 V to 12 V, 800m A, max. 10 W, two-core terminal block

Material

Cover: PC, main body: ADC12

Dimensions

173 mm × 175.6 mm × 202.5 mm (6.81" × 6.91" × 7.97") (L × W × H)

Package Dimensions

270 mm × 250 mm × 223 mm (10.62" × 9.84" × 8.78") (L × W × H)

Weight

Approx. 1.64 kg (3.61 lb.)

With Package Weight

Approx. 2.16 kg (4.76 lb.)

Operating Condition

-30 °C to 70 °C (-22 °F to 158°F). Humidity: 5% to 95% (non-condensing)

Storage Condition

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (Non-condensing)

Installation Height

4 to 6 m (Recommend height: 6 m)
