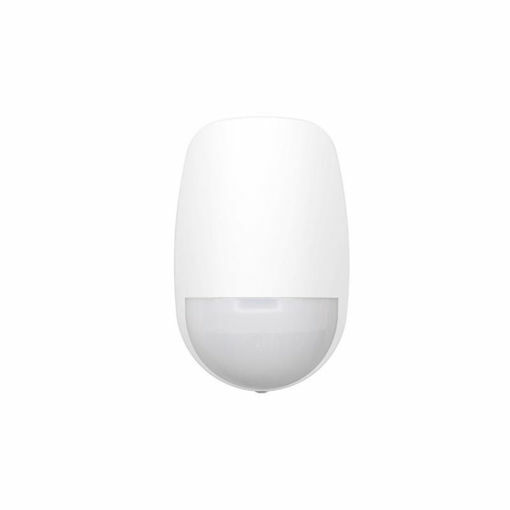

DS-PDD12P-EG2-WE

Wired Dual-tech Detector

3D optics including creep-zone protection, full coverage without dead angle
24G microwave to prevent wall penetration
Digital temperature compensation
Fully remote configurable through APP
Multiple enrollment method and easy installation design
Easy replaceable battery with PCB protected
Frequency hopping against jamming for reliable transmission

SKU: HK-314300071

Overview
Contact Us

Detection Performance
Detection Method
Passive Infrared;Microwave
Detection Range
12m
Detection Angle
85.9°
Detection Zones
52
Detectable Speed
0.3～2m/s
Sensitivity
Auto;Pet
Pet Immunity
30Kg
White Light Filter
6500lux
Microwave Frequency
24GHz(24.15～24.25GHz)
Digital Temperature Compensation
Support
Creep Zone Protection
Support
Feature
Digital Processing
Support
Sealed Optics
Support
Tamper Protection
Front
Interface
Alarm Output
Normally Closed
LED Indicator
Green(PIR), Orange(Microwave), Blue(Alarm)
Transmission
Transmission Method
Wired
Electrical Characteristics
Power Supply
9 to 16 VDC
Typical Voltage
12 VDC
Power Consumption
Maximum current：17mA@12VDC

Quiescent current：17mA@12VDC

General
Operation Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature
-20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity
10% to 90%
Dimension(WxHxD)
65.7 mm (2.59 ") × 103.8 mm (4.09 ") × 45.5 mm (1. 79 ")
99g (3.5 oz)
Mounting Height
1.8 m to 2.4 m
Mounting Method
Wall
Application Scenario
Indoor
Bracket
Optional wall & ceiling accessory
