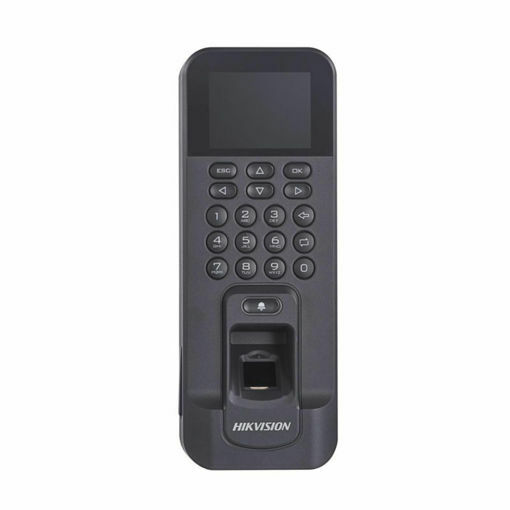

DS-K1T804AMF Fingerprint Access Control Terminal

Integrated management of access control and the time and attendance functions

3,000 fingerprints, 3,000 cards and 100,000 events storage
Built-in card reader for Mifare1 card
Communication via TCP/IP and Wi-Fi
RS-485, Wiegand interface
Alarm input and output interface
ISUP5.0, ISAPI

SKU: HK-302915288

Overview
Contact Us

Display:
Screen size 2.4-inch
Resolution 320 × 240
Type LCD-TFT display screen

Audio:
Audio output 1 loudspeaker, 1 buzzer
Network
Wired network TCP/IP, 10/100Mbps, self-adaptive
Wi-Fi Support

Interface
Network interface 1
RS-485 1
Wiegand 1
Lock control 1
Exit button 1
Door contact input 1
Alarm input 1
Alarm output 1
TAMPER 1
USB 1

Capacity:
Card capacity 3000
Fingerprint capacity 3000
Event capacity 100,000

Authentication:
Card type Mifare 1 card
Card reading distance 0 to 4.5 cm
Card reading duration ＜ 1 s
Fingerprint module Optical fingerprint module
Fingerprint comparing mode 1:1 and 1:N
Fingerprint recognition duration ＜ 1 s
