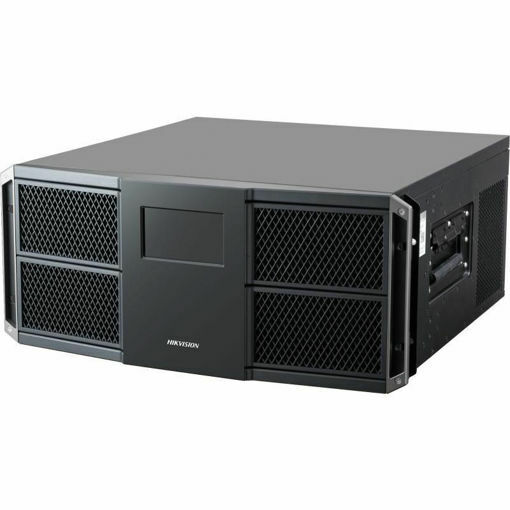

Chassis
Chassis Height
4.5 U
Bus Type
10 GB network switching
Signal Sampling Quality
YUV 444
Mixed Installation of Service Boards
Supported
Main Control Board Slot
2
Service Board Slot
11
Installed Main Control Boards
1
Max. Input Slot
10
Max. Output Slot
10
Power Supply Slot
3
Installed Power Supplies
1
Fans
4
Dual Device Hot Backup
Supported
Interface
USB Interface No.
2 × USB 2.0
Serial Interface
2 × Console port (RJ-45) + 1 × RS-485/RS-232 multiplex interface (RJ-45, baud rate:115200, valid data bit: 8 bit)
Screen Type
4.3 inch non-touch screen, length × width: 105.42 mm × 67.07 mm (4.15 inch × 2.64 inch), resolution: 480 × 272
Power
Power Interface
100 VAC to 240 VAC, 50/60 Hz
Device Power Consumption
≤ 550 W (full configuration)
Environment
Working Temperature
0 °C ~ 50 °C
Working Humidity
10 ~ 90%
Network
Management Network Interface
2 × 10/100/1000 Mbps auto-sensing Ethernet interface (2 network ports on the switching board and 1 network port reserved on the main control board)
Transmission Protocol
SDK, RTSP, ONVIF
Video Wall
Video Walls
8
Video Wall Scale
40
Split Window
Supported
Open Windows
16
Input Source Copy Capability
Each output board can duplicate eight 2K images from the input source but the LED controller board does not have copy capability.
Window Division per Output Port
1, 4, 6, 8, 9, 16
Layers Per Port
8 × 1080p layers or 4 × 4K layers
Layers per Device
512 (fully installed with the output boards)
Scenes
128
Scene Auto-Switch Delay
400 ms
Plans
128
Live View Resolution
16-channel D1 or 32-channel CIF; 4-channel D1 or 16-channel CIF when previewing the image of a video wall on a client with all service boards installed in the device
UHD Fusions
≤ 16
Background Image
Total: 8; One background image on each video wall.
Resolution: 16382 × 8192
Format: JGP, JPEG
Subtitles
Total: ≤ 12; Single video wall: ≤ 3
Input OSD
Supported
Input Image Clipping
Supported
200 pixel points on top, bottom, left, and right.
Local Signal Source Decoding Delay
50 ms
Network Signal Source Decoding Delay
200 ms
Display Video Wall Image
Supported
General
Net Weight
≤ 33.39 kg (73.65 lb.)
Full configuration, including 21.84 kg (48.16 lb.) chassis and 1.05 kg (2.31 lb.) for each service board
(2.31 lb.) for each service board
Gross Weight
≤ 51.32 kg (113.13 lb.)
Full configuration, including 29.1 kg (64.15 lb.) chassis and 2.02 kg (4.45 lb.) for each service board
Dimensions (W × H × D)
442 mm × 207.8 mm × 447 mm (17.4 inch × 8.18 inch × 17.59 inch)
Packing List
1 × grounding cable, 1 × audio adapter cable, 1 × serial port cable, 1 × AC power cord, 1 × power supply, 1 × regulatory compliance and safety information manual
