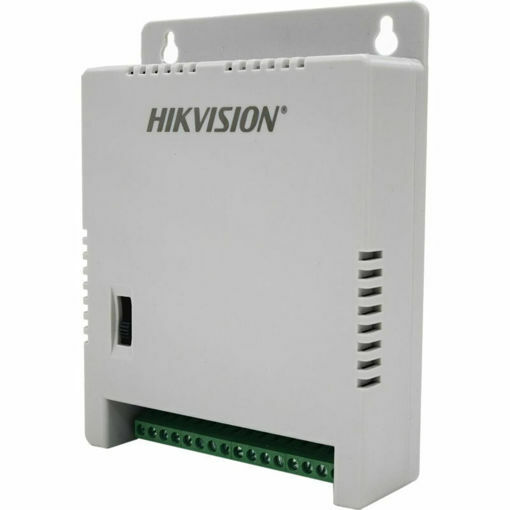

DS-2FA1208-C16(EUR)(Africa)

Multi-channel SMPS

96 W, 12 VDC/1 A max per channel, max total current is 8 A
Over current/short circuit/over voltage protection
Good EMC performance
Compact size; applicable to cameras
150 to 285 VAC wide voltage input

SKU: HK-304901289

Overview
Contact Us

Parameters
Appearance
White
Dimension
185 mm × 130.6 mm × 35 mm (7.28" × 5.14" × 1.38")
LED Indicator
Green
Input
150 to 285 VAC, 47 Hz to 63 Hz
Output
12 VDC/1 A per channel
Ripple & Noise 150 mVp-p
0.2 Vp-p (200 mV)
AC Input Connector
C8
DC Output Connector
DC Plug: grid terminal
Storage Conditions
-40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)
