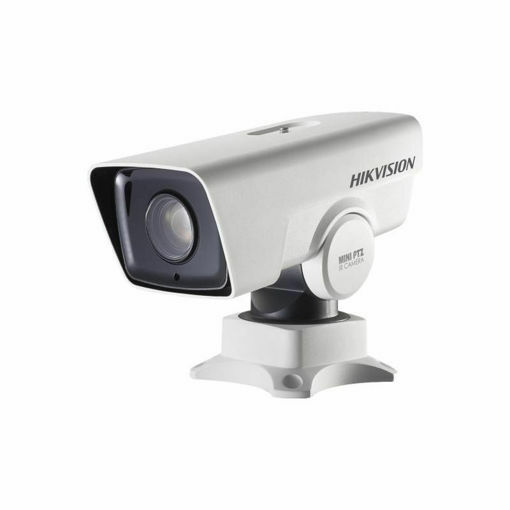

    DS-2DY3420IW-DE4(O-STD)(S6)


    High quality imaging with 4 MP resolution



    • Clear imaging against strong back lighting due to 120 dB WDR technology
    • 20x optical zoom provides close up views over expansive areas
    • Good night-time performance with up to 50 m IR
    • Water and dust resistant (IP66)
    SKU: HK-327000561
    Login For Price
    Camera
    Image Sensor 1/2.8" progressive scan CMOS
    Max. Resolution 2560 × 1440
    Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
    Shutter Speed 1/1 s to 1/30,000 s
    Day & Night IR cut filter
    Zoom 20 × optical, 16 × digital
    Lens
    Focal Length 4.7 mm to 94 mm
    FOV Horizontal FOV 53.3° to 2.6°, vertical FOV 30.6° to 1.5°, diagonal FOV 60.5° to 3°
    Focus Auto, semi-auto, manual
    Aperture Max. F1.6
    Zoom Speed Approx. 3.2 s (Optical Lens, Wide-Tele)
    Illuminator
    Supplement Light Type IR
    Supplement Light Range IR Distance: up to 50 m
    Smart Supplement Light Yes
    PTZ
    Movement Range (Pan) 360° endless
    Movement Range (Tilt) From -40° to 30°
    Pan Speed Configurable, from 0.5°/s to 60°/s. Preset speed: 60°/s
    Tilt Speed Configurable, from 0.5°/s to 50°/s. Preset speed: 50°/s
    Proportional Pan Yes
    Presets 300
    Preset Freezing Yes
    Patrol Scan 8 patrols, up to 32 presets for each patrol
    Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
    Park Action Preset/Pattern Scan/Patrol Scan
    PTZ Status Display Yes
    Scheduled Task Preset/Pattern Scan/Patrol Scan/Dome Reboot/Dome Adjust/Aux Output
    Power-off Memory Yes
    Video
    Main Stream
    50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720, 1280 × 960);
    60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720, 1280 × 960)
    Sub-Stream
    50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
    60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
    Third Stream
    50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
    60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
    Video Compression
    Main Stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Third Stream: H.265/H.264/MJPEG
    Video Bit Rate 32 Kbps to 16 Mbps
    H.264 Type Baseline Profile/Main Profile/High Profile
    H.265 Type Main profile
    Region of Interest (ROI) 8 fixed regions for each stream
    Scalable Video Coding (SVC) H.264 and H.265 encoding
    *
    *
    *
    *
