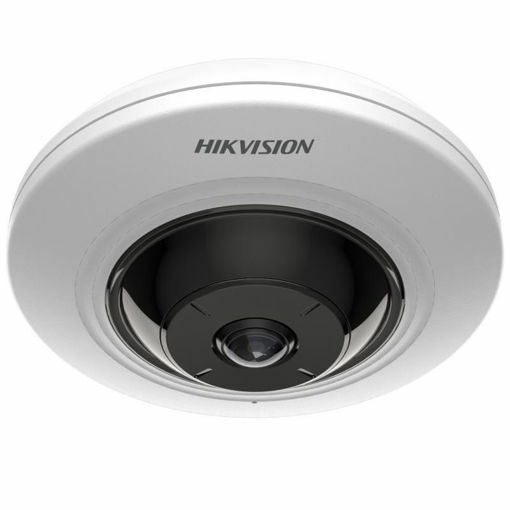

DS-2CD2955G0-ISU(1.05mm)(O-STD)

High quality imaging with 5 MP resolution

Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
180° fisheye view
Audio and alarm interface available

SKU: HK-311322801

Overview
Contact Us

Camera

Image Sensor

1/2.7" Progressive Scan CMOS

Max. Resolution

2560 × 1920

Min. Illumination

Color: 0.017 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Lens

Lens Type

Fixed focal lens, 1.05 mm

Focal Length & FOV

1.05 mm, horizontal FOV: 180°, vertical FOV: 180°, diagonal FOV: 180°

Focus

Fixed

Lens Mount

M12

Iris Type

Fixed

Aperture

F2.25

Depth of Field

0.1 m to ∞

DORI

D: 21 m, O: 8 m, R: 4 m, I: 2 m

Illuminator

Supplement Light Type

Supplement Light Range

Up to 8 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

50 Hz: 25 fps（2560 × 1920, 2048 × 1536, 1280 × 960）

60 Hz: 30 fps（2560 × 1920, 2048 × 1536, 1280 × 960）

Sub-Stream

50 Hz: 25 fps (640 × 480)

60 Hz: 30 fps (640 × 480)
