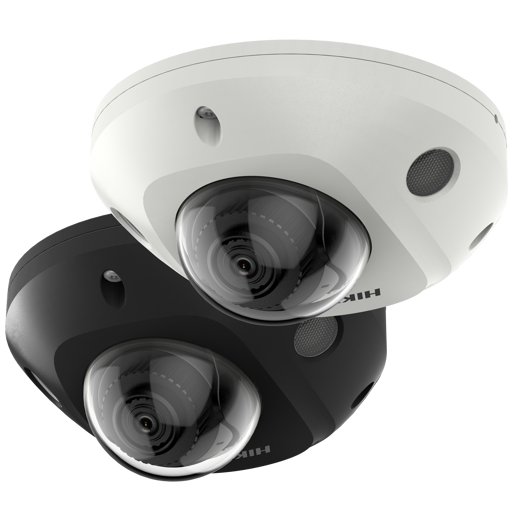

DS-2CD2546G2-IS(4mm)(C)(O-STD)

High quality imaging with 4 MP resolution

Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB WDR technolog
Focus on human and vehicle targets classification based on deep learning
Water and dust resistant IP67 and vandal proof IK08
Excellent low-light performance with powered-by-DarkFighter technology
-S: audio and alarm interface available
-W: Realizing Wi-Fi connection and easy installation

SKU: HK-311316866

Overview
Contact Us

Camera

Image Sensor

1/3" Progressive Scan CMOS

Max. Resolution

2688 × 1520

Min. Illumination

Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Lens Type

Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 102.7°, vertical FOV 55.2°, diagonal FOV 122.5°

4 mm, horizontal FOV 82.8°, vertical FOV 45.3°, diagonal FOV 97.7°

Lens Mount

M12

Iris Type

Fixed

Aperture

F1.4

Depth of Field

2.8 mm: 1.6 m to ∞

4 mm: 2.1 m to ∞

DORI

2.8 mm:

D: 64 m

O: 26 m

R: 13 m

I: 6 m

4 mm

D: 77 m

O: 31 m

R: 16 m

I: 8 m

Illuminator

Supplement Light Type

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
