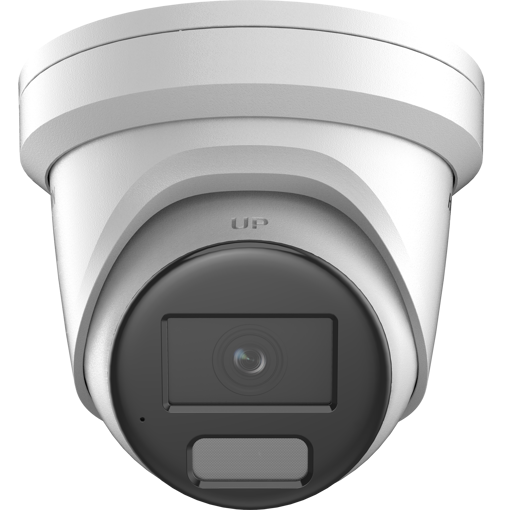

DS-2CD2386G2H-IU(2.8mm)(eF)(O-STD)

High quality imaging with 8 MP resolution

SKU: HK-311324675

Camera

Image Sensor 1/1.8" Progressive Scan CMOS

Max. Resolution 3840 × 2160

Min. Illumination Color: 0.0008 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR

Shutter Time 1/3 s to 1/100,000 s

Day & Night IR cut filter

Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Lens Type Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°

4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°

Lens Mount M16

Iris Type Fixed

Aperture F1.0

Depth of Field

2.8 mm: 3.3 m to ∞

4 mm: 3.8 m to ∞

DORI

2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m

4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Illuminator

Supplement Light Type IR

Supplement Light Range Up to 30 m

Smart Supplement Light Yes

IR Wavelength 850 nm

Video

Main Stream

50 Hz:

25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

24 fps (3840 × 2160)

30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
