DS-1LN6-UU

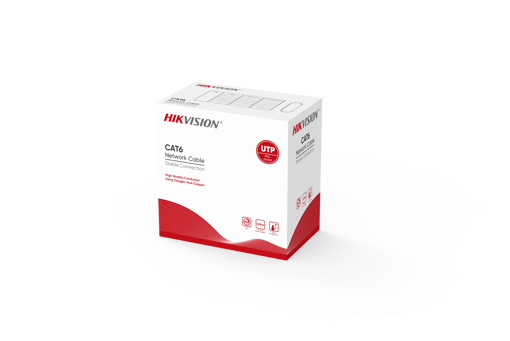

Full diameter 305 m CAT6 network cable

Core diameter: 0.565mm
Excellent transmission performance using solid copper
Quality verified by Fluke test
Guaranteed long PoE transmission distance
Great PVC flame resistance

SKU: HK-307400043

Overview
Contact Us

General

Core Color

1 White- Blue /Blue 2 White-Orange /Orange,3 White-Green /Green 4 White- Brown /Brown,

Packing

Wooden Tray & Carton

Carton Dimension

Per request

Packing length

305±1.5m

Rip-cord

Yes

Drain wire

Sheath Physical Properties

Before Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period (℃×hrs) 100℃×24h×10d,After Aging Tensile Strength(Mpa) ≥12.5, Elongation(%) ≥125,Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks,

Electrical Characteristics (20℃)

1.0-250.0MHz Impedance ((Ω) 100±15,1.0-250.0MHz Delay Skew (ns/100m) ≤45,DC Resistance (Ω/100m) max 9.38,DC Conductor Resistance Unbalance (%) max 5.0,

Conductor

Material

Solid-Bare Copper,Content 99.95%,

Nom.O.D.(mm)

0.565±0.005

Insulation

Material

HDPE

Diameter

1.02±0.05mm

Sheath

Thickness

0.55±0.05 mm

External O.D.

6.2±0.4 mm

Surface

Clean,Frap,Satiation

Material

PVC(complies RoHS),CM

Color

Orange RAL2003
