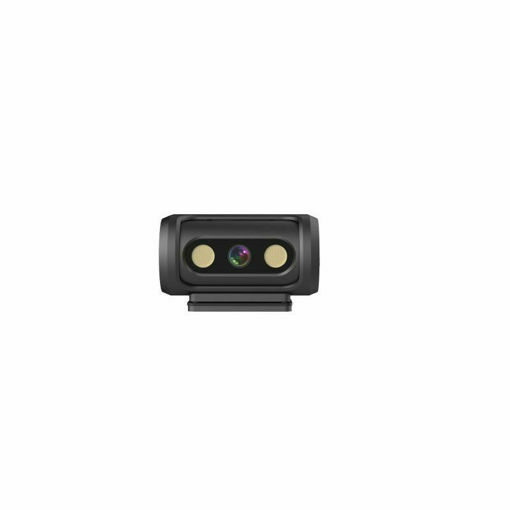

AE-VC583I-IS/P(H)(RJ45)(8mm)

Camera
Image Sensor
1/2.7" Progressive Scan CMOS
Min. Illumination
Color: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Slow Shutter
Not supported
P/N
P/N
Day & Night
IR cut filter
Angle Adjustment
Tilt: -25° to +55°
Power-off Memory
Yes
Lens
Focal Length & FOV
4mm/6mm/8mm/12mm/16mm fixed lens

4mm:Horizontal FOV 78°, vertical FOV 55°, diagonal FOV 105°

6mm:Horizontal FOV 49°, vertical FOV 35°, diagonal FOV 63°

8mm:Horizontal FOV 37°, vertical FOV 28°, diagonal FOV 46°

12mm:Horizontal FOV 28°, vertical FOV 10°, diagonal FOV 30°

16mm:Horizontal FOV 17°, vertical FOV 13°, diagonal FOV 22°

Lens Mount
M12
Max. Aperture
F1.6
Illuminator
IR Wavelength
850 nm
IR Range
Up to 20 m IR range
Video
Max. Resolution
2560 × 1920
Main Stream
50Hz: 25fps (2560 × 1920, 1920 × 1080, 1280 × 720); 60Hz: 30fps (2560 × 1920, 1920 ×

1080, 1280 × 720)

Sub-Stream
50Hz: 25fps (704 × 576, 640 × 480) ;60Hz: 30fps (704 × 480, 640 × 480)
Third Stream
50Hz: 25fps (1280 × 720)
