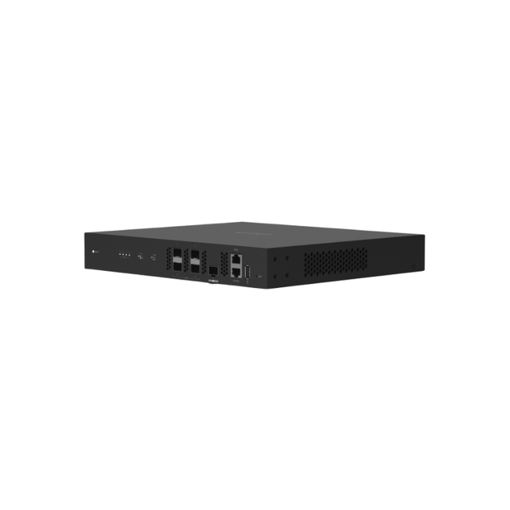

512 Client Capacity GPON OLT with UNMS Management System

Dimensions 299.8 x 289 x 42.5 mm (11.8 x 11.4 x 1.7")
Weight Without mounting brackets: 1.9 kg (4.3 lb)
With mount brackets: 2.1 kg (4.7 lb)
Enclosure material SGCC steel
Hardware
Networking interface (4) GPON OLT SFP ports
(1) 10 Gbps SFP+ port
Management interface (1) Ethernet Out-of-Band
(1) RJ45 Serial Console port
Power method Universal input, 100—240V AC, 50/60 Hz / 25V DC
Power supply AC/DC, internal, 56V DC
Supported voltage range 100—240V AC / 16–25V DC
Max. power consumption 35W (Excluding SFP modules)
Button (1) Factory reset
Ambient operating temperature -10 to 45° C (14 to 113° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
Power (1) Blue/white
Blinking blue: reset to default
Steady blue: system is booting
Steady white: service is ready
GPON OLT SFP (4) White
Steady/blinking white: link/activity
SFP+ (1) White/gren
White:10G
Green: 1G
Steady on after link is up; blinking while active
Ethernet (1) Green
Green: 1G
Steady on after link is up; blinking while active
