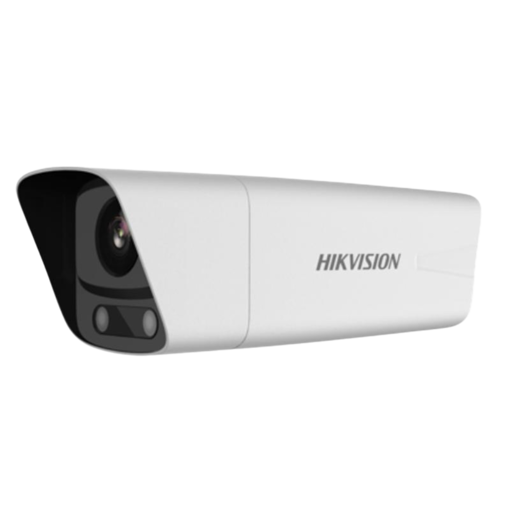

    315101423 iDS-TCR204-E(3.1~9mm)

    High definition: 2 MP HD camera with max. 1920 × 1200 resolution and 25 fps frame rate



    • Low illumination: High quality imaging with 1/3" progressive scan CMOS. 0.011 lux
    • low illumination with clearer imaging at night
    • Lens: 3.1 to 6 mm motor-driven vari-focal lens. Remote debugging is quick and easy
    • Multiple interfaces: Supports multiple control interfaces to connect peripheral alarm device, LED display, audio output, etc
    • Smart Detection: Supports up to 15 parking spaces status detection, parking space occupation detection, and weaving out of the lane detection
    SKU: HK-315101423
    Login For Price
    Camera
    Sensor Type
    1/3" Progressive Scan CMOS
    Min. Illumination
    Color: 0.019 Lux @ (F1.9, AGC OFF)
    B/W: 0.011 Lux @ (F1.9, AGC OFF)
    Shutter
    1/30 s to 1/100,000 s
    Max. Resolution
    1920 × 1200
    Day/Night Switch
    Supported
    Number of Detected Parking Space
    Max 40(installation height:12m)
    Max 25(installation height:9m)
    Max 15(installation height:6m)
    Max 5(installation height:3m)
    IR Cut Filter
    IR cut filter
    Blue glass module to reduce ghost phenomenon
    Lens
    Lens Type
    2 to 8 mm
    Aperture
    2 to 8 mm:F1.9
    Focal Length & FoV
    2 to 8 mm, horizontal FoV: 105.5° to 51.4°, vertical FoV: 55.9° to 28.9°, diagonal FoV: 126.9° to 59.2°
    Focus
    Auto,Vari-focal lens, motor-driven lens
    Supplement Light
    Supplement Light Type
    Warm White Light
    Supplement Light Range
    20m
    WDR
    140db
    Defog
    supported
    Main Stream
    50 Hz: 25 fps (1920*1200 (default),1920*1080,1280*720,704*576)
    Sub-Stream
    50 Hz: 25 fps (1920*1200 (default),1920*1080,1280*720,704*576)
    Image Settings
    Saturation, brightness, contrast, white balance, and gain are adjustable by client
    software or web browser.
    Day/Night Switch
    Auto/Scheduled/Manual
    WDR Switch
    On, Time, Brightness
    Frame Rate
    25fps
    Video
    ROI
    8 regions respectively for main stream and sub-stream, 6 levels for each region.
    Video Compression
    H.265/H264/MJPEG
    H.264 Type
    Low profile
    Medium profile
    High Profile
    Video Bit Rate
    32 Kbps to 16 Mbps
    Bit Rate Type
    Constant, Variable
    Scalable Video Coding (SVC)
    MJPEG , H.265 and H.264 encoding
    *
    *
    *
    *
