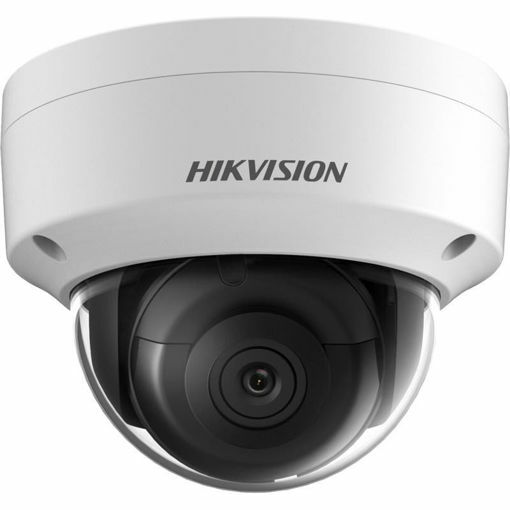

1/3" Progressive CMOS, ICR, Color: 0.028 Lux @(F2.0; AGC ON)

1/3" Progressive Scan CMOS

SKU: HK-DS 2CD2121G0 I

Camera

Image Sensor 1/2.8" Progressive Scan CMOS

Min. Illumination Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR

Shutter Speed 1/3 s to 1/100,000 s

Slow Shutter Yes

Day &Night IR Cut Filter

Wide Dynamic Range 120 dB

Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

DNR 3D DNR

Lens

Lens 2.8/4/6 mm

Auto-Iris No

Aperture F2.0

Focus Fixed

FOV

2.8 mm, horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 136°

4 mm, horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°

6 mm, horizontal FOV: 54.5°, vertical FOV: 31.3°, diagonal FOV: 62.3°

Lens Mount M12

Illuminator

IR Range Up to 30 m

Wavelength 850 nm

Video

Max. Resolution 1920 × 1080

Main Stream

50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)

60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub Stream

50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

Video Compression

Main stream: H.265/H.264

Sub-stream: H.265/H.264/MJPEG

H.264 Type Baseline Profile/Main Profile/High Profile

H.265 Type Main Profile

Video Bit Rate 32 Kbps to 8 Mbps
