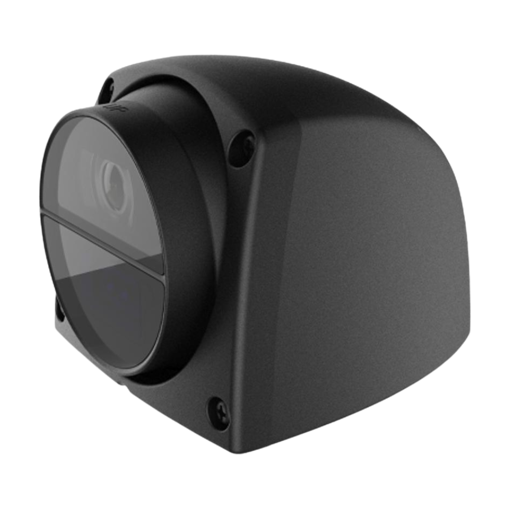

AE-VC124T-IT(2.1mm)

Min. Illumination
Protection Level
0.1 Lux@(F1.2, AGC ON), 0 Lux with IR
IP68,IK10
Case Type
Resolution
Turret
1280×720
Lens Type
FOV
Fixed focal lens, 2.1, 2.8, 3.6 mm optional
2.1 mm, horizontal: 117°, vertical: 66°, diagonal: 143°
2.8 mm, horizontal: 96°, vertical: 50°, diagonal: 115°
3.6 mm, horizontal: 75°, vertical: 42°, diagonal: 86°
Sensor
IR Distance
Camera
Progressive Scan CMOS
10m
Shutter Speed
P/N
1/50 s to 1/50,000 s
NA
Wide Dynamic Range
Day ＆ Night
Lens
NA
Electronic
Lens Mount
M12
Video
Frame Rate
720P@25 fps
SNR
42 dB
Interface
Video Output
Built-in Microphone
TVI
NO
Built-in Speaker
Audio
Interface Style
NO
NO
1 Vpp Composite Output (aviation plug)
1: video, 2: empty, 3: power, 4: ground
Supplement Light Unit
Power Supply
Power Consumption
General
9 to 16 V DC
Max. 2.5 W
Camera Material
Camera Dimension
Metal
74.7 mm × 65.8 mm × 57.3 mm (2.9" × 2.6" × 2.3")
Startup and Operating
Conditions -40 °C to 75 °C (-40 °F to 167 °F), 90%
